Drag Specialties Extended Smooth-Top QuickBob™ Rubber-Mount Gas Tank — 11586-BX46

Description

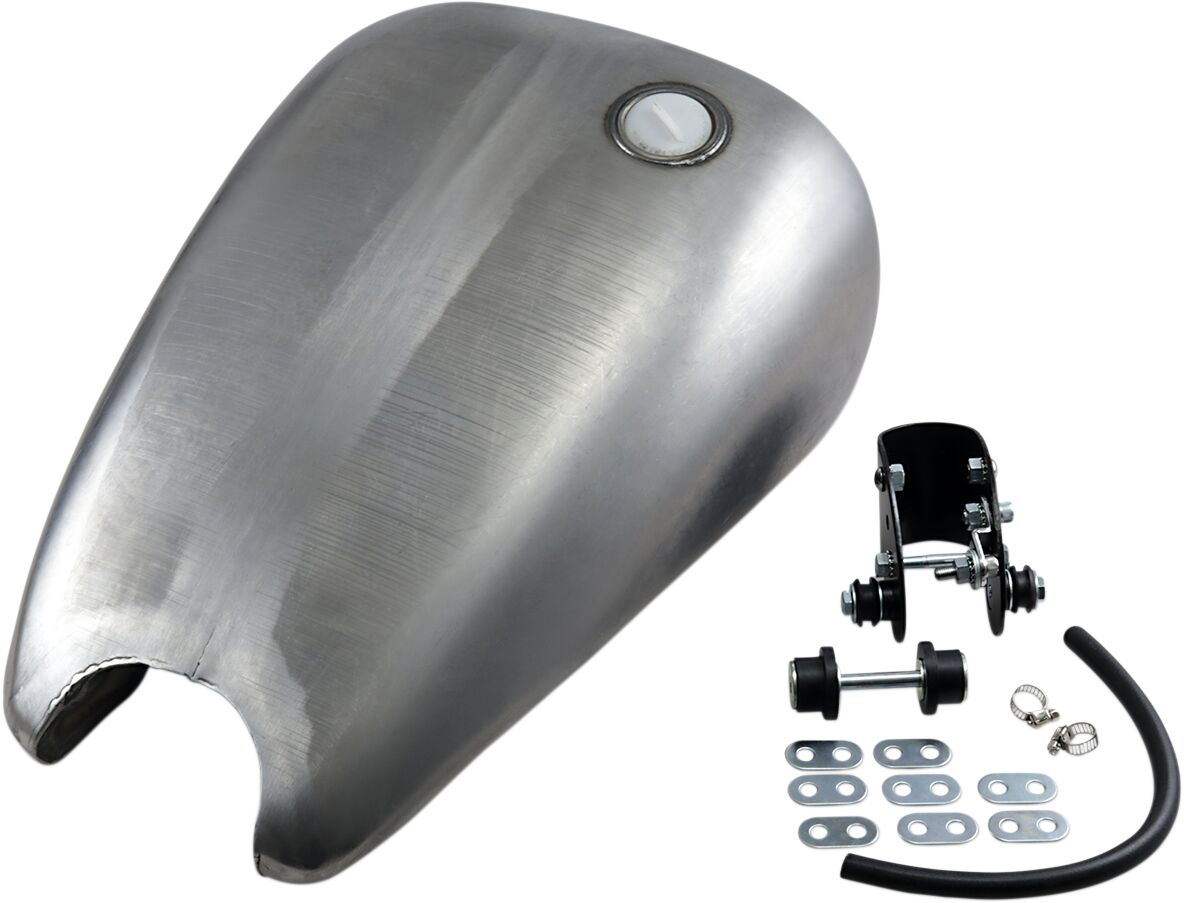

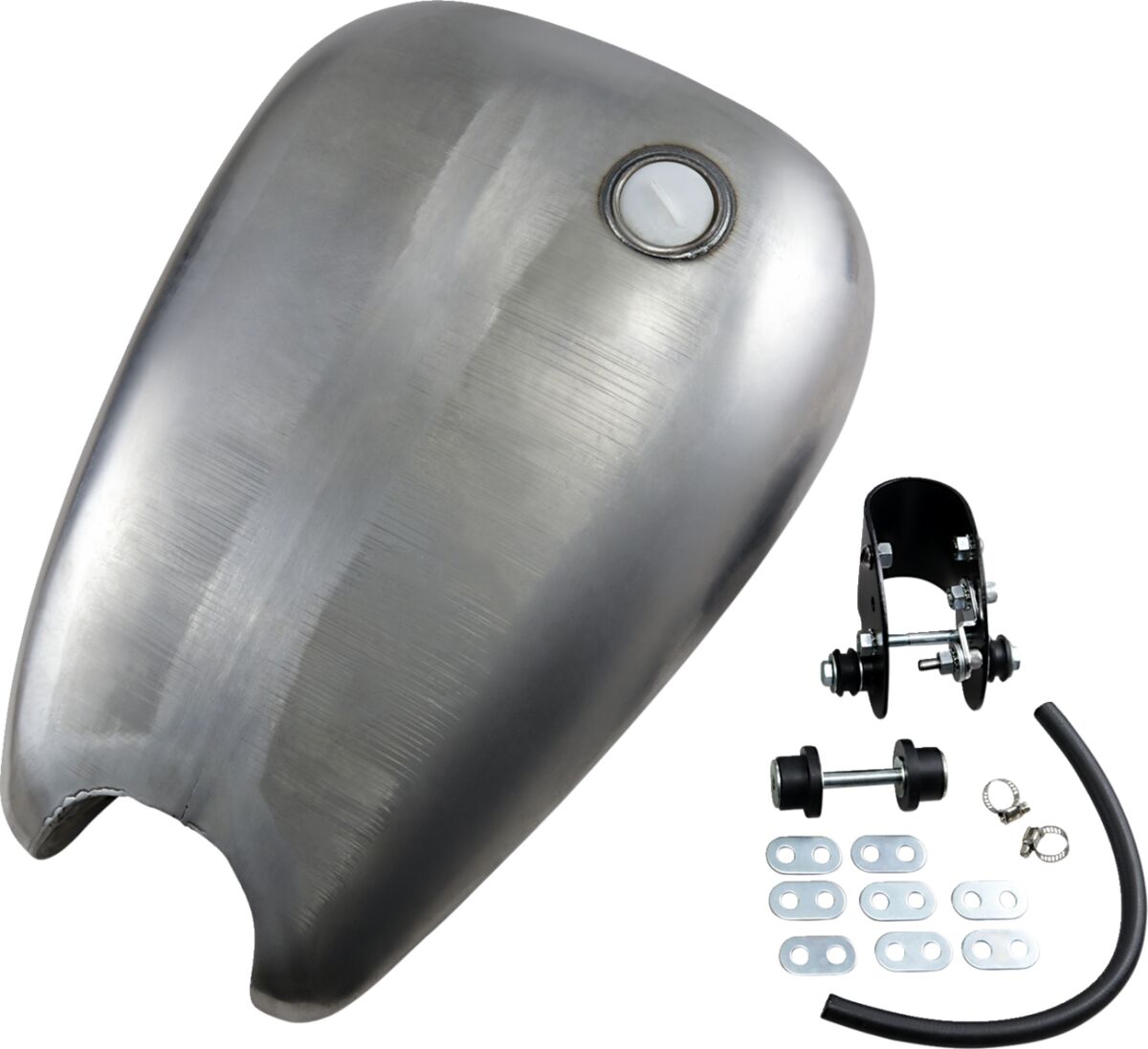

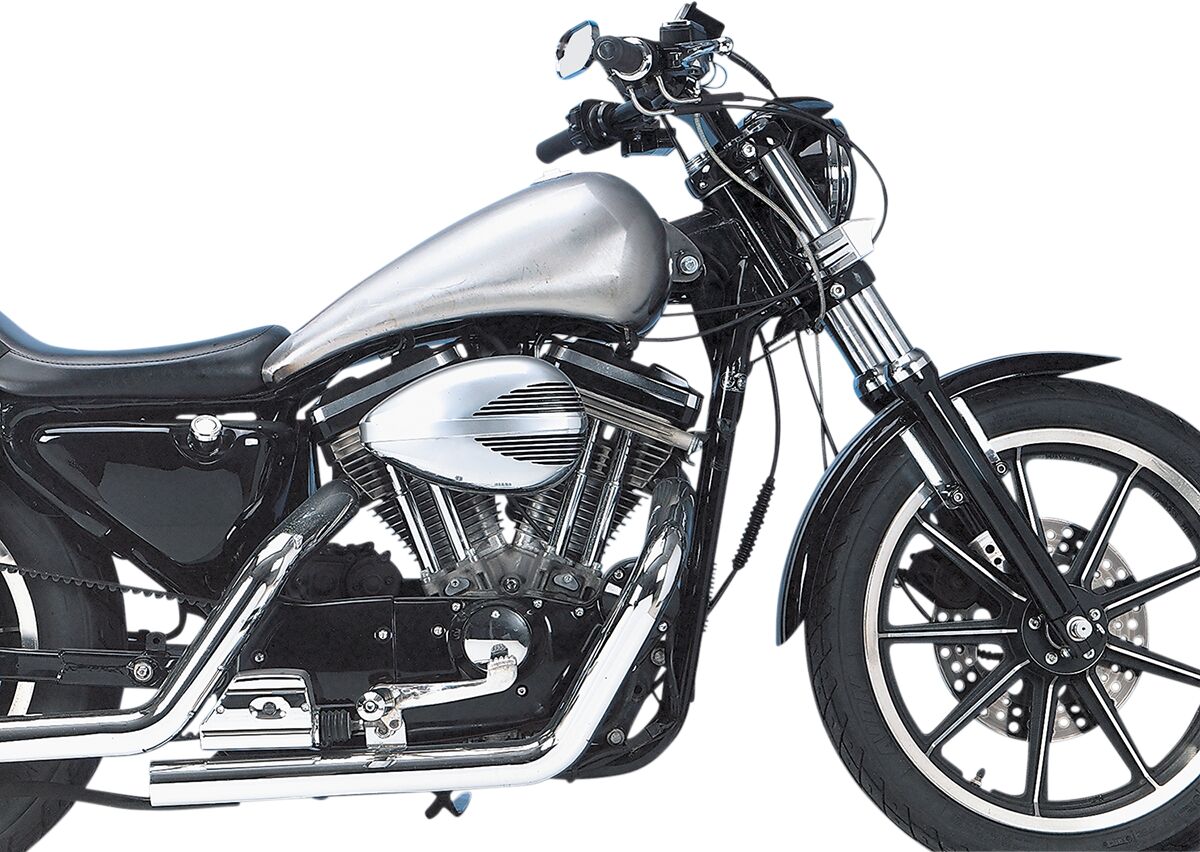

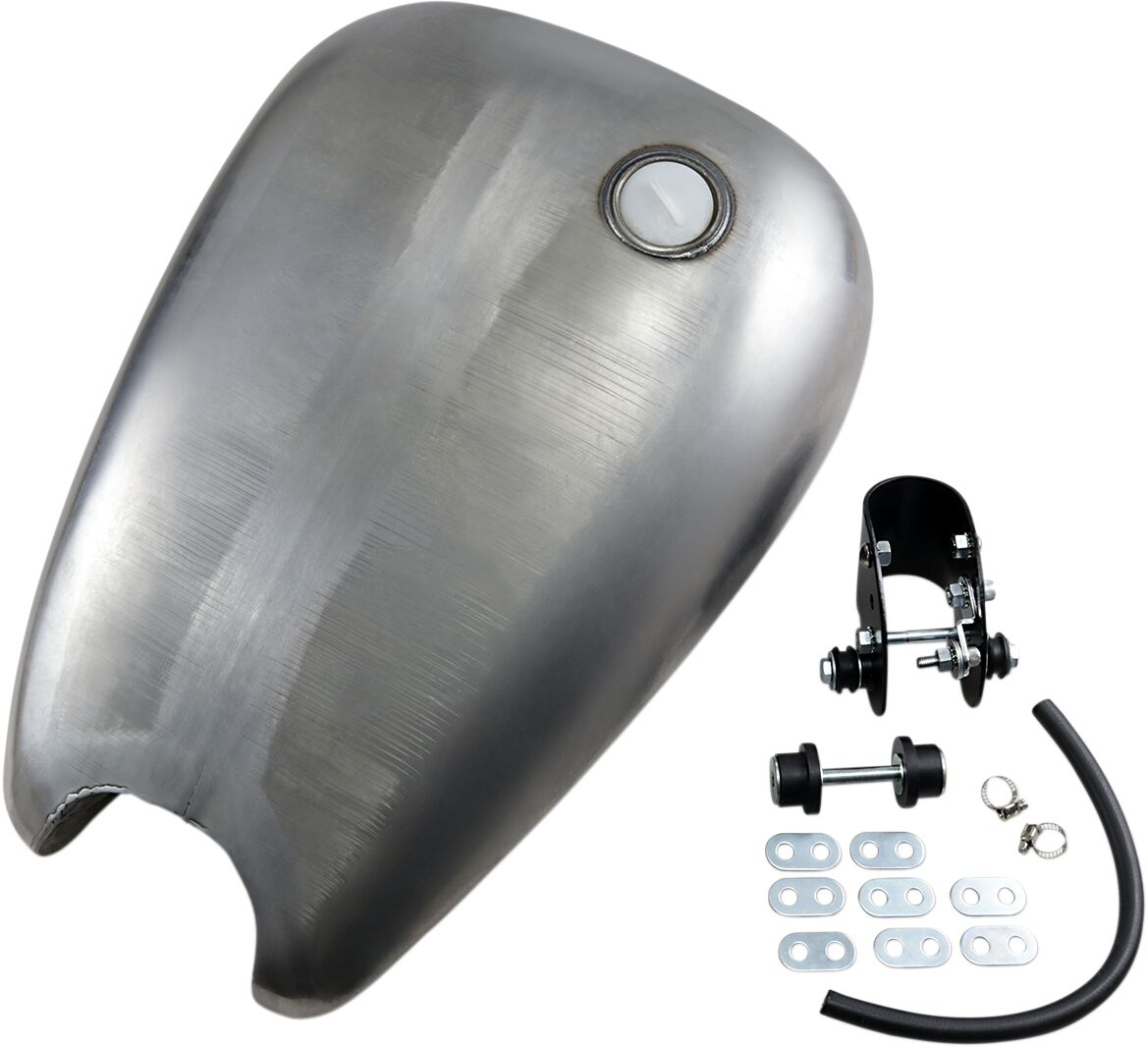

Extended Smooth-Top QuickBob™ Rubber-Mount Gas Tank

• Extended gas tank design
• Tanks have cutout in rear for seat nose (some seats may need to be shortened)
• 2" longer than a standard QuickBob tank
• Includes necessary mounting brackets
• 3.9-gallon capacity
• Utilizes a 22 mm petcock
• When installed on '92 and later models and the OEM continuous venting system is eliminated or disconnected, do NOT reuse your stock vented cap. Stock vented cap should be replaced with earlier version of the screw-type caps.
• Caps are not included unless noted.
• All tanks are shipped unpainted.
• All gas tanks should be fitted, pressure tested and sealed before being painted to eliminate potential problems.
Requires part # DS-390077 ignition coil relocation kit.

Specifications

Fitment

• Harley Davidson XL 1200 C Sportster Custom (1996–1998) — 1199 cc; ALL
• Harley Davidson XL 1200 C Sportster Custom (1999–2003) — 1199 cc; ALL
• Harley Davidson XL 1200 S Sport (1996–1998) — 1199 cc; ALL
• Harley Davidson XL 1200 S Sport (1999–2003) — 1199 cc; ALL
• Harley Davidson XL 883 C Sportster 53 Custom (1998–1999) — ALL
• Harley Davidson XL 883 C Sportster 53 Custom (2000–2003) — ALL
• Harley Davidson XL 883 R Roadster (2002–2003) — ALL
• Harley Davidson XLH 1000 Sportster (1982) — 987 cc; ALL
• Harley Davidson XLH 1000 Sportster (1983–1985) — 987 cc; ALL
• Harley Davidson XLH 1100 Sportster (1986–1987) — 1087 cc; ALL
• Harley Davidson XLH 1200 Sportster (1988–1995, 1998–1999) — 1199 cc; ALL
• Harley Davidson XLH 1200 Sportster (1996–1997) — AMERICA
• Harley Davidson XLH 1200 Sportster (2000–2003) — AMERICA
• Harley Davidson XLH 883 Sportster (1986–1987, 1990–1999) — ALL
• Harley Davidson XLH 883 Sportster (2000–2003) — ALL
• Harley Davidson XLH 883 Sportster Deluxe (1988–1993) — ALL
• Harley Davidson XLH 883 Sportster Deluxe (1994–1995) — AMERICA
• Harley Davidson XLH 883 Sportster Hugger (1988–1999) — ALL
• Harley Davidson XLH 883 Sportster Hugger (2000–2003) — ALL
• Harley Davidson XLS 1000 Roadster (1982) — 987 cc; ALL
• Harley Davidson XLS 1000 Roadster (1984–1985) — 987 cc; ALL
• Harley Davidson XLS 1000 Roadster Custom Sport (1983) — 987 cc; ALL
• Harley Davidson XLX 1000 Sportster (1983–1985) — 987 cc; ALL
