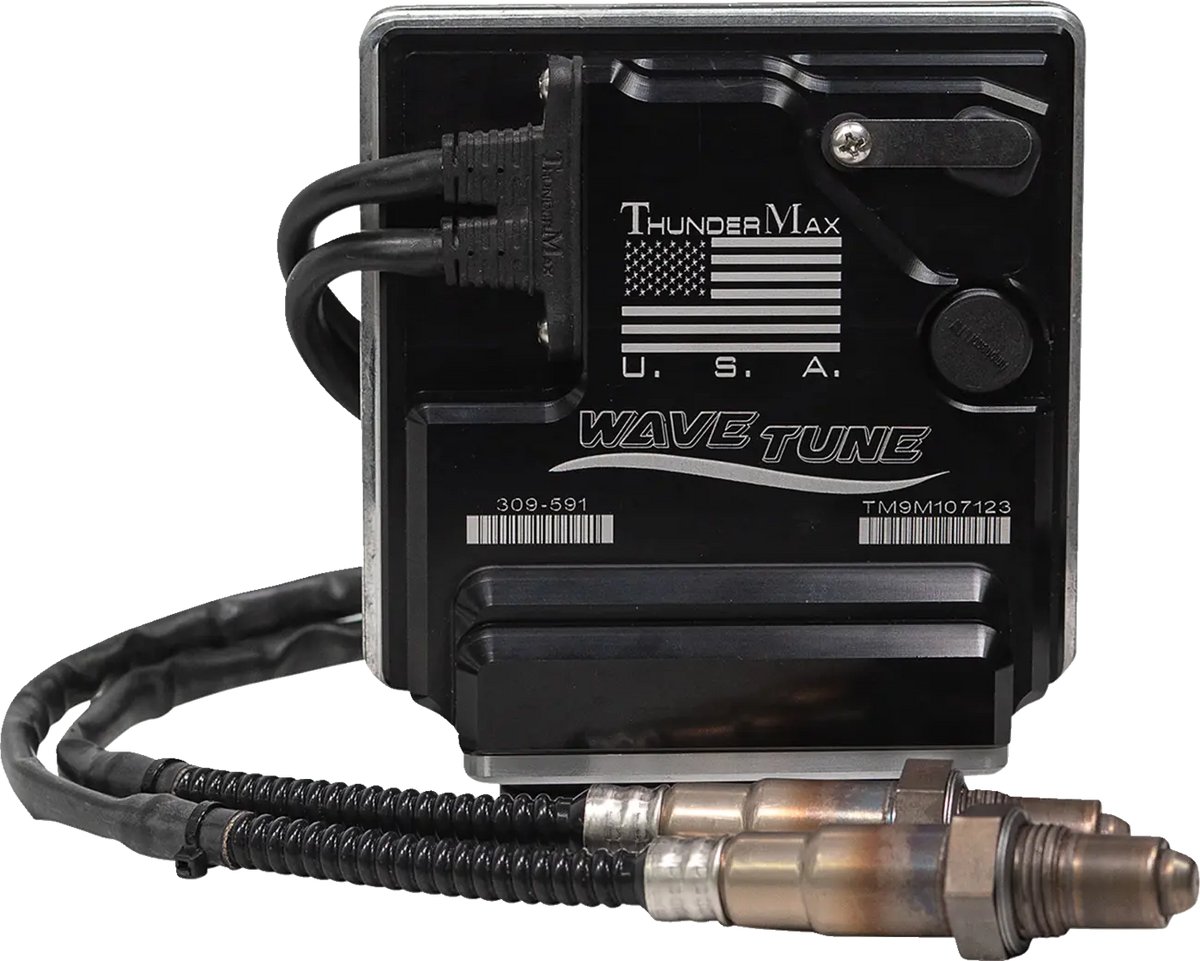

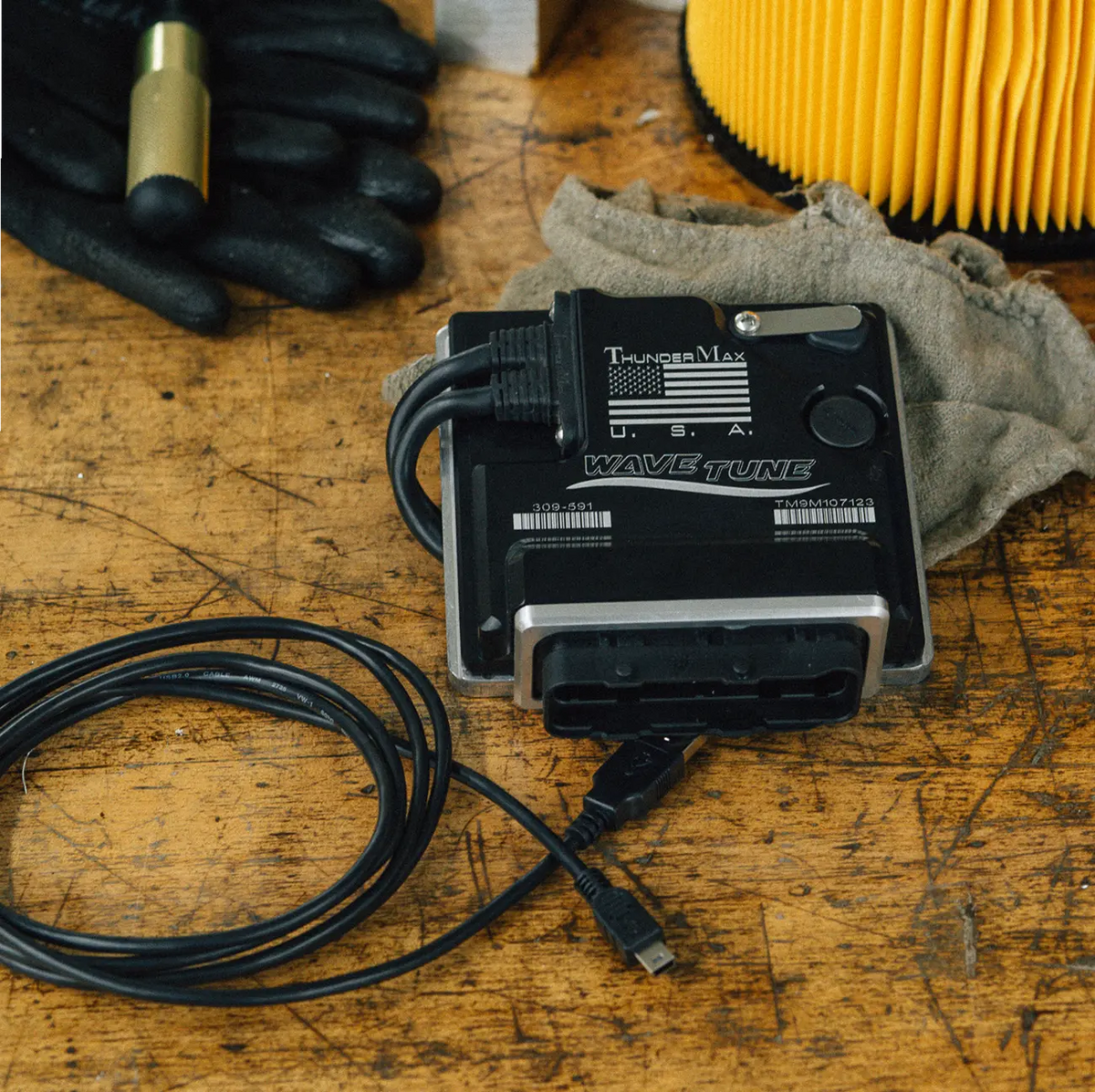

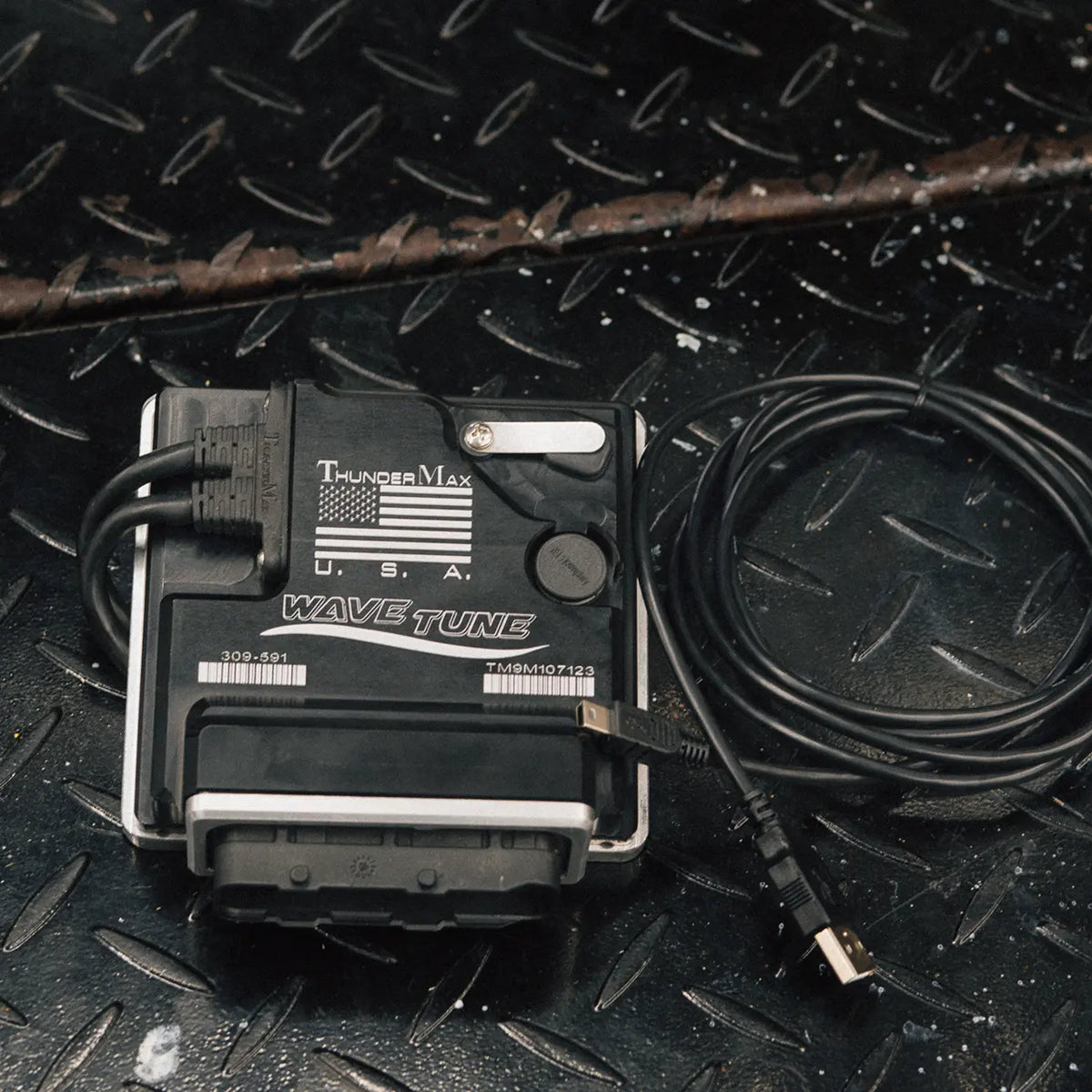

ThunderMax Engine Control Module Kit with Integral Auto Tune — 309-591
EU Stock
Estimated delivery: 7–10 days
ThunderMax Engine Control Module Kit with Integral Auto Tune — 309-591
Sale price£1,308.59
Choose options
ThunderMax Engine Control Module Kit with Integral Auto Tune — 309-591
Sale price£1,308.59
The details that matter
Details
Description
ThunderMax Engine Control Module Kit with Integral Auto Tune (manufacturer part 309-591) is listed for the Harley-Davidson applications shown below. Key specifications: Black; Air/Fuel Ratio. Check the exact model, year and market before ordering.
- Includes ThunderMax ECM with Auto-Tune Module, plug-in harness and two wide-band sensors, TMax software and communication USB cable, Quick-Start Easy Install and Comprehensive User's Manual, technical support and free software and updates
- Hundreds of maps available to download for your bike (based on model, engine size, exhaust system air cleaner, pistons, cams, etc.) - load the map of your choice and the integral auto-tune will do the rest
- Software program allows live monitoring, recording and examination of diagnostic codes and datalogs including number of starts, engine temperature and rpm operation
- Utilizes wide-band oxygen sensors and works as a closed-loop control system to continuously self-adjust and properly tune the motorcycle's air/fuel ratio for all riding conditions
- ThunderMax ECM with Auto-Tune module mounts conveniently in place of the factory ECM and plugs in to the existing harness
- Easy installation: replace the factory ECM, install new oxygen sensors and harness, load the correct map for your bike, and ride
- New maps, software, firmware updates, map analysis and tech support available online at no charge
- Adjustable front and rear cylinder AFR maps, ignition timing (spark) maps, and startup maps
- Works with all popular exhaust systems and is compatible with high-performance camshafts
- Rider can adjust idle speed, rev limit and speedometer calibration
- Improves throttle response, exhaust sound and driveability
- Supports turbo, nitrous and supercharger applications
- Does not require dyno tuning
- Made in the USA
Because of possible clearance issues, some aftermarket exhaust systems may require modifications or relocation of their oxygen sensor port bungs.
Specifications
| Features | Closed Loop| Includes Oxygen Sensor |
|---|---|
| Color/Finish | Black |
| Model | ThunderMax |
| Product Name | Engine Control Unit |
| Base Color | Black |
| Units | Kit |
| Type | Air/Fuel Ratio |
| Programming | Autotune| Downloadable Maps |
| Riding Style | Street |
Fitment
View exact Harley-Davidson applications
| Model | Years | Market | Position / notes |
|---|---|---|---|
| Harley Davidson FLH 1868 ABS Electra Glide Revival 114 | 2021 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHR 1750 ABS Road King 107 | 2021, 2022 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHRXS 1868 ABS Road King Special 114 | 2021, 2022, 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHT 1750 ABS Electra Glide Standard 107 | 2021, 2022 | AMERICA | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTCUTG 1868 ABS Tri Glide Ultra 114 | 2021, 2022, 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTCUTGSE 1923 ABS Tri Glide CVO 117 | 2022 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTCUTGSE 1923 ABS Tri Glide Ultra CVO 117 | 2021 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTK 1868 ABS Glide Ultra Limited 114 | 2021, 2022, 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTK 1868 ABS Ultra Limited Anniversary 114 | 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHTKSE 1923 ABS Ultra Limited CVO 117 | 2021 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHX 1750 ABS Street Glide 107 | 2021, 2022, 2023 | AMERICA | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXS 1868 ABS Street Glide Special 114 | 2021, 2022, 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXS 1868 ABS Street Glide Special 114 Arctic Blast Limited | 2021 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXS 1868 ABS Street Glide Special Anniversary 114 | 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXSE 1923 ABS Street Glide CVO 117 | 2021, 2022 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXSE 1977 ABS Street Glide CVO 121 | 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLHXST 1923 ABS Street Glide ST 117 | 2022, 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLRT 1868 ABS Freewheeler 114 | 2021, 2022, 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRK 1868 ABS Road Glide Limited 114 | 2020, 2021, 2022, 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRKSE 1923 ABS Road Glide Limited Anniversary CVO 117 | 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRKSE 1923 ABS Road Glide Limited CVO 117 | 2022 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRT 1868 ABS Road Glide 3 114 | 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRX 1750 ABS Road Glide 107 | 2021, 2022, 2023 | AMERICA | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXS 1868 ABS Road Glide Special 114 | 2021, 2022, 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXS 1868 ABS Road Glide Special Anniversary 114 | 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXSE 1923 ABS Road Glide CVO 117 | 2021 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXSE 1923 ABS Road Glide CVO 117 | 2022 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXSE 1977 ABS Road Glide CVO 121 | 2023, 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXST 1923 ABS Road Glide ST 117 | 2022, 2023 | ALL | NOT COMPATIBLE FOR EURO5+ |
| Harley Davidson FLTRXSTSE 1977 ABS Road Glide ST CVO 121 | 2024 | ALL | NOT COMPATIBLE FOR EURO5+ |
PartSpecificNotes: NOT COMPATIBLE FOR EURO5+
Part Numbers
| Supplier SKU (Parts Europe) | 10203514 |
|---|---|
| Manufacturer Part Number | 309-591 |
Specifications
| Brand | THUNDERMAX |
|---|
