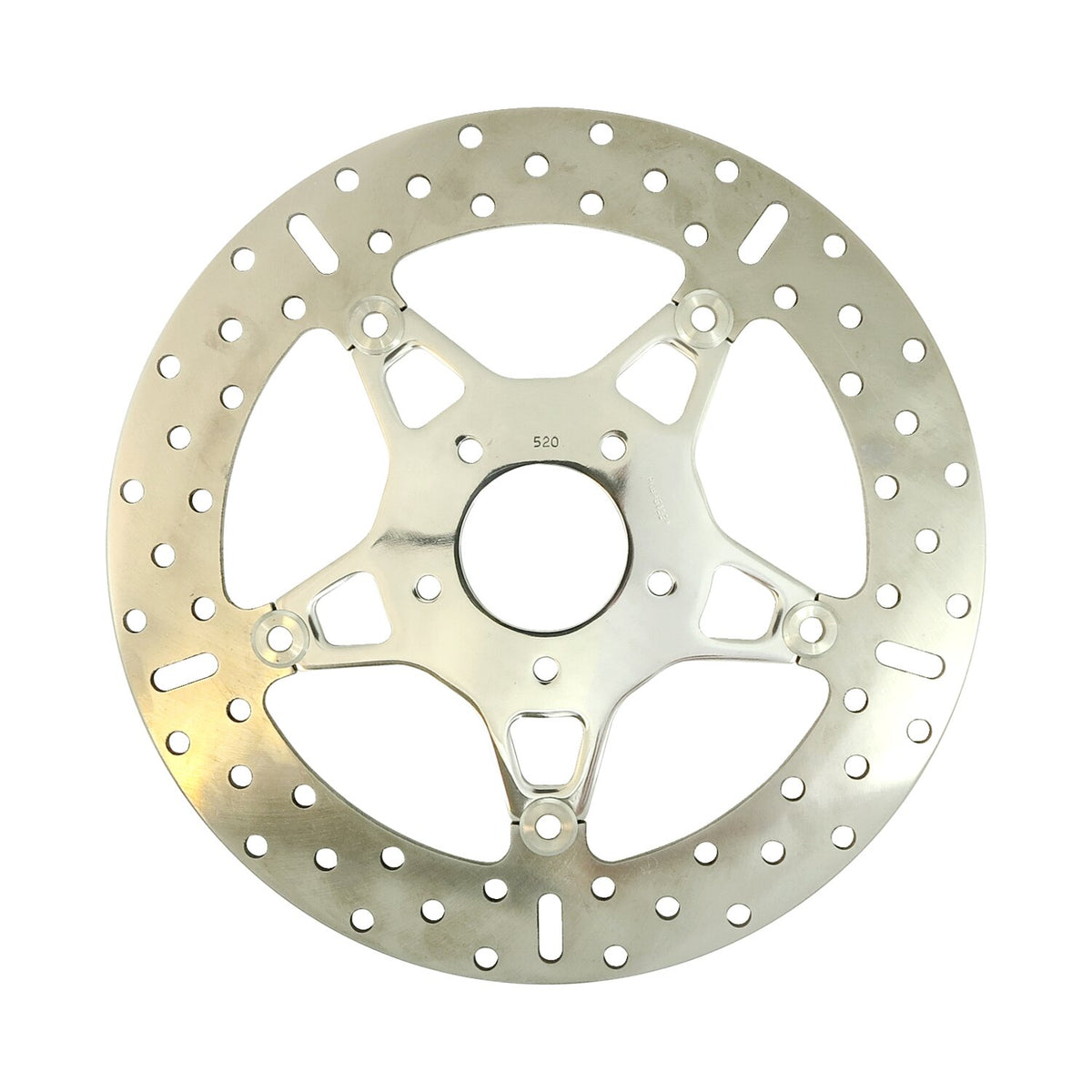

EBC, 5-Button stainless floating brake rotor. Front L/R. Pol
Choose options
The details that matter
Details
Description
Polished aluminum center. 5mm thick.
Front left & right; dimensions: 300mm OD; 56.3mm ID; 5/16" (8mm) bored mounting holes; bolt circle 3.25"; 4.5mm thick. Mount style 'A'.
Can be used with Organic & Sintered brake pads. All EBC brake discs fit standard 5-bolt hubs.
Note: EBC 5-Button floating brake rotors come with a lightweight aluminum center which is designed for dual disc use only.
Specifications
| Unit | 1 |
|---|
Fitment
Front left/right dual disc models: 15-26 Softail (excl. 2017 FXSE); 06-17 Dyna (excl. 2017 FXDLS); 08-25 (NU) FLT/Touring (excl. 23-25 FLHXSE; 23-25 FLTRXSE; 24-25 FLTRXSTSE; 24-25 FLHX; 24-25 FLTRX); 09-26 Trikes; 14-22 (NU) XL. (Models with 3.25" bolt circle mount holes only) (mount style ‘A’)
Part numbers
| Supplier SKU | 915658 |
|---|---|
| Manufacturer part | MD520 |
Specifications
| Brand | EBC |
|---|---|
| Category | Brake rotors |
Fitment
Part numbers
