Dynatek, DynaTune. With 6-pin diagnostic port
Choose options
The details that matter
Details
Description

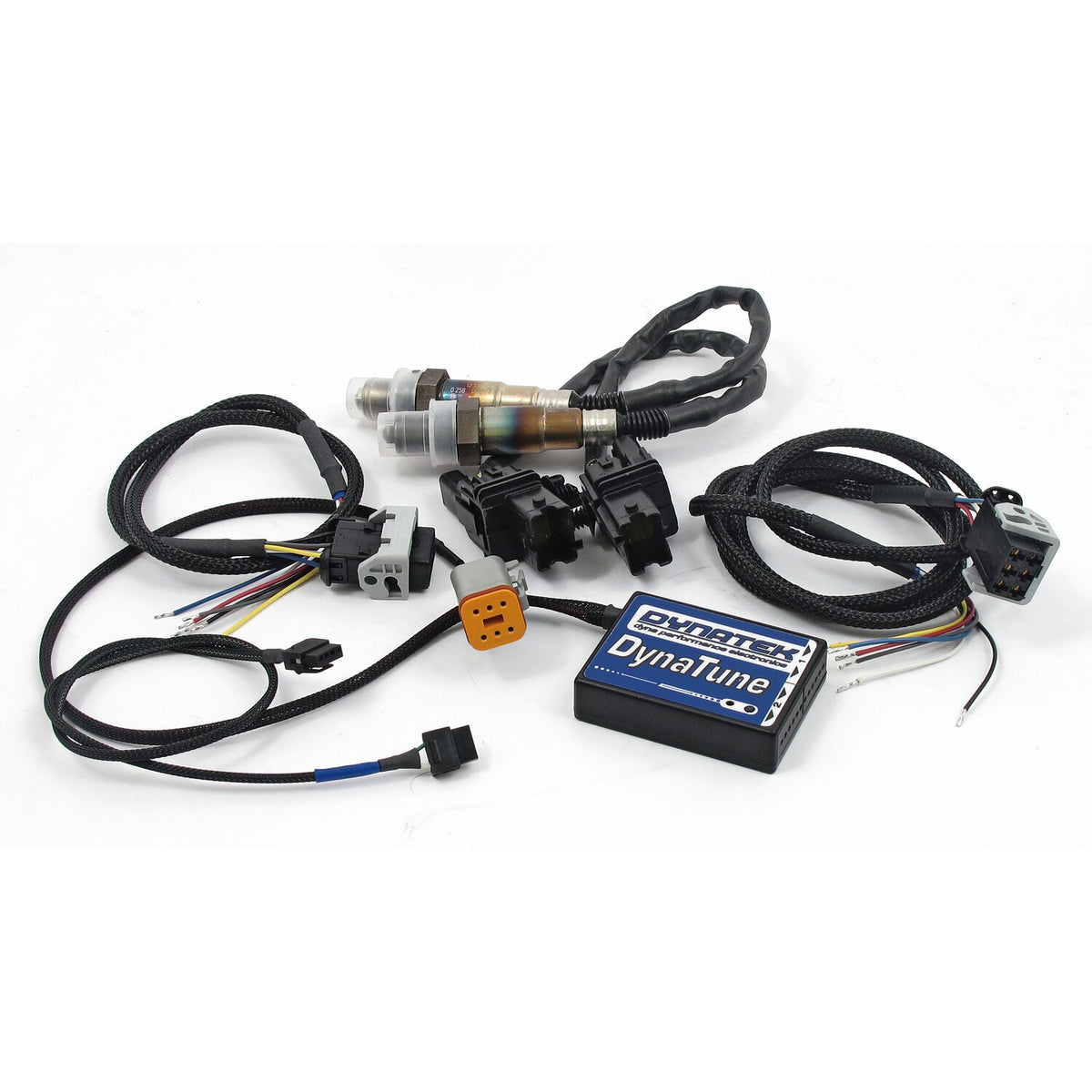

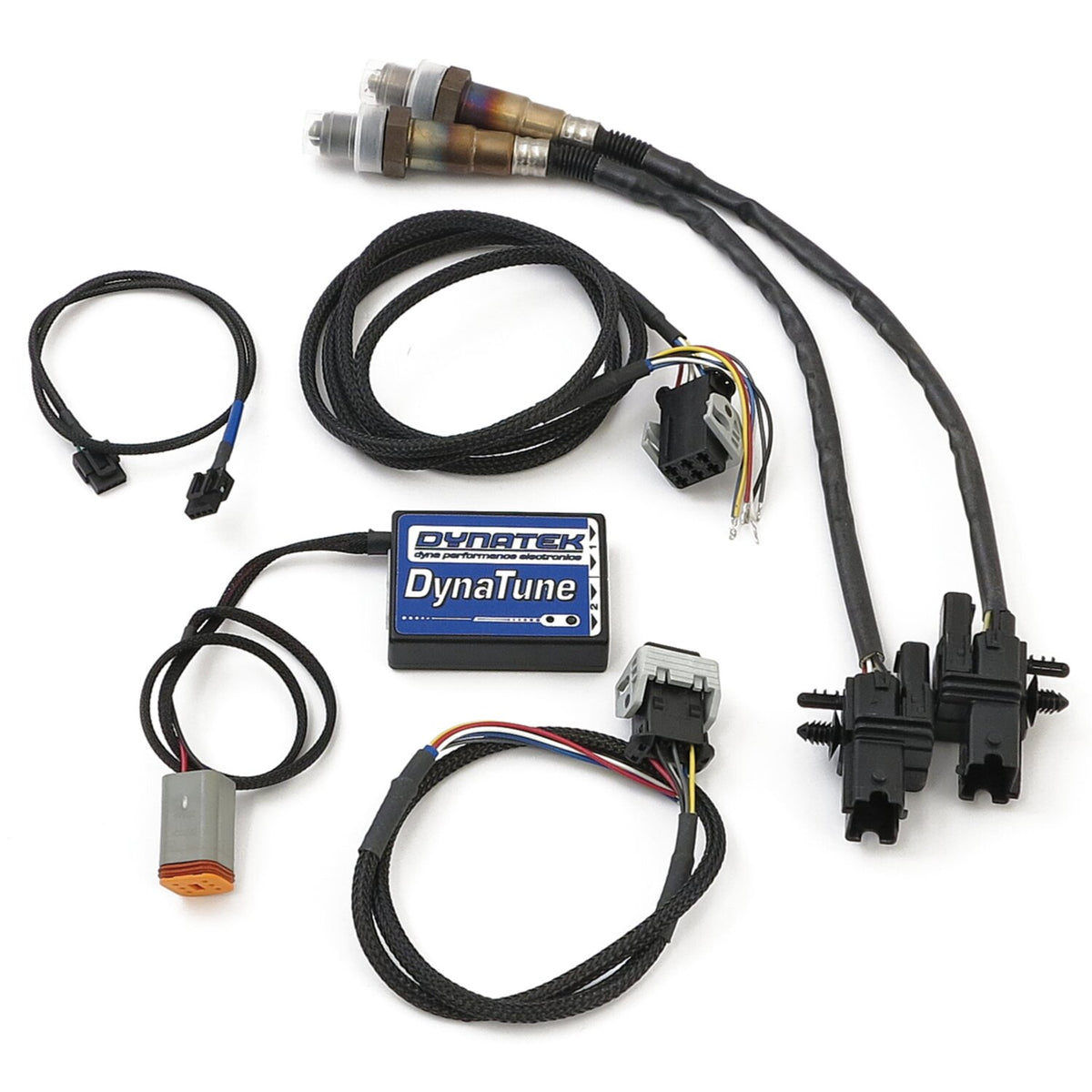

For HDLAN (CAN-bus) models. The DynaTune is an optional fuel monitoring module designed to be used with the Dynatek Fusion EFI and Dyna 2000-HDEFI. It includes two wide band O2 sensors for precision and accurate measuring and tuning on the fly. It will enable automatic correction while you ride. Each map that is offered has pre-set AFR (Air Fuel Ratio) target values. Advanced users can change the AFR from the given baseline since they are fully adjustable, each throttle opening and RPM area.
Note: Compatible with the Dynatek Fusion EFI and the Dyna 2000-HDEFI ignition & fuel injection control modules.
Note: Two versions are available, one for 01-15 H-D models featuring the J1850 protocol (available as 903348), this one is for models equipped with the later HDLAN (CAN-Bus) system.
Specifications
| Unit | KIT |
|---|
Fitment
11-20 H-D with HDLAN (CAN-bus), with 6-pin diagnostic port (NU)
Part numbers
| Supplier SKU | 903349 |
|---|---|
| Manufacturer part | DT-4 |
Specifications
| Brand | Dynatek |
|---|---|
| Category | Fuel injection controllers |
Fitment
