Daytona, DEVA01 Multifunctional cockpit

Description

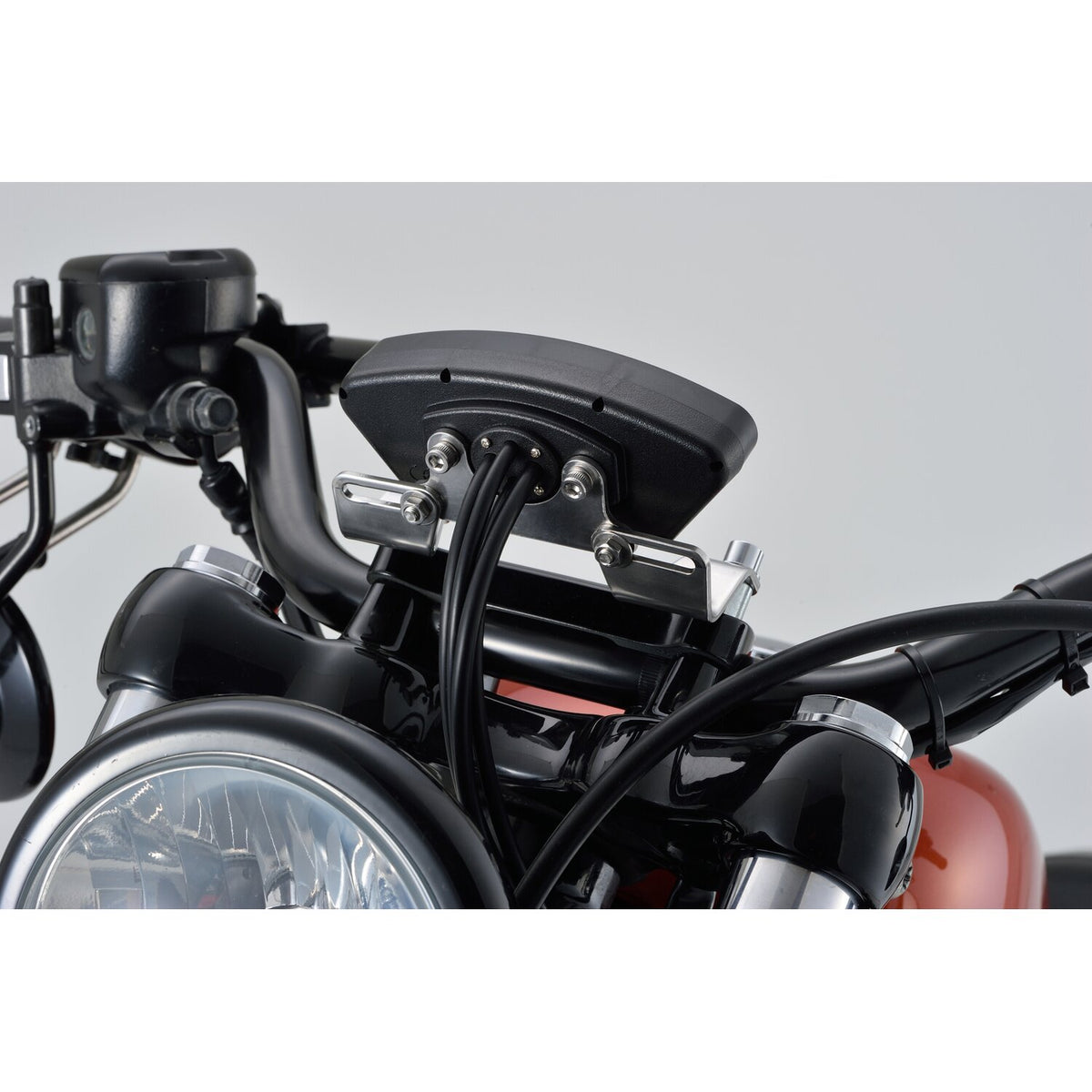

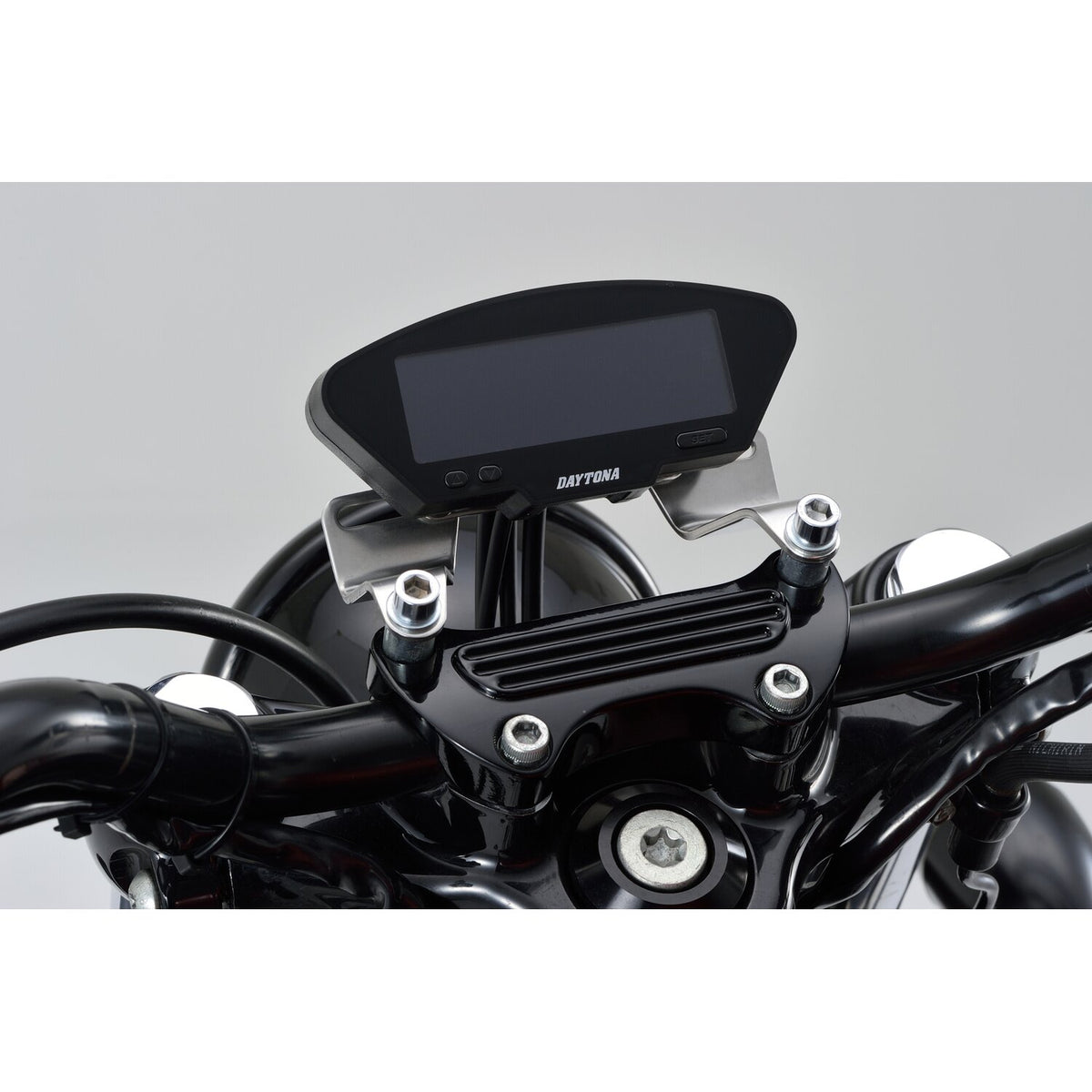

A digital speedo cockpit that offers a compact IP67 rated waterproof housing with a large variations of functions for motorcycle use. Functions include speedometer (0-399 km/h or 0-299 mph), trip meter (0-999,99 km or miles), odometer (0-99.999 km or miles), tachometer (Switchable max 10.000 or 0-20.000 rpm), clock, gear position, fuel warning mode, temperature in Celsius/Fahrenheit for ambient air, water (cooling fluid) and engine oil. For water & oil an overheat warning is programmable between 0° and 180° Celsius. All regular indicator lights for left/right turn signals, neutral, high beam and a warning light. The included magnetic reed sensor is used for bikes that have no electronic speedo pulse and can be installed on wheel, sprocket or such. Two M5 screw holes have a mount pitch of 45mm on the back of the instrument. The included stainless bracket comes with slotted holes to allow an adjustable mount hole pitch between 63mm to 112mm. Approx. dimension: 132mm x 58mm x 30.5 mm.

Note: Optional sensors are available as 597661 (engine oil sensor) and 597662 (ambient air temperature sensor).
Note: E-marked

Specifications

Fitment

Universal

Part numbers
