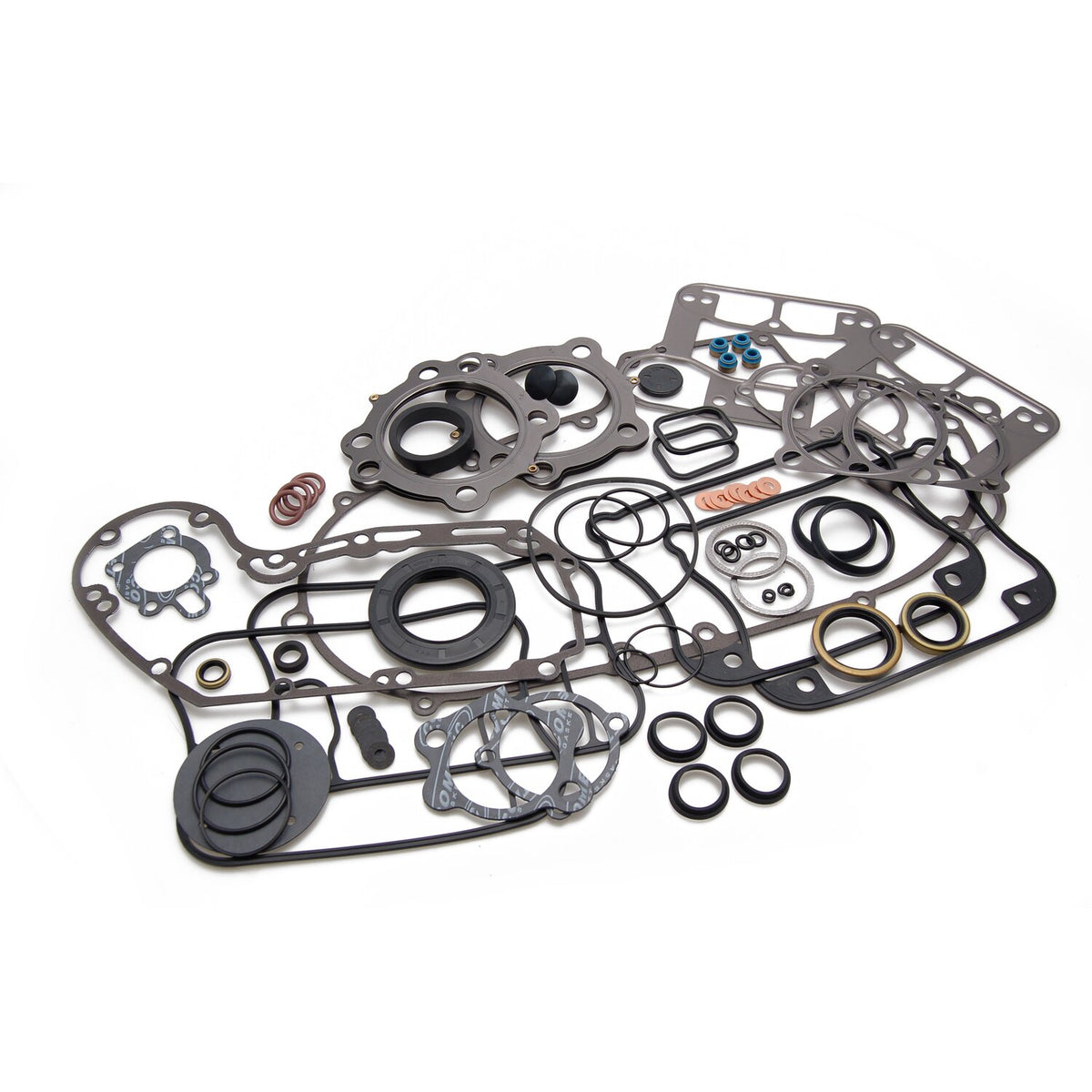

Cometic, EST motor gasket kit

Description

This EST (Extreme-Sealing-Technology) gasket set is complete with all gaskets, seals and o-rings that are used on this model, including primary gaskets. It's the easy way to do a complete overhaul and have all gaskets that are necessary in one package to reassemble the engine.

This EST gasket set contains MLS (Multi-Layer-Steel) .030" thick head gaskets which eliminates the use of dowel pin o-rings.

Base gaskets are SLS (Single-Layer-Steel) .020" thick. They have .005" of high temperature Viton rubber on both sides and are the strongest on the market.

Rocker cover gaskets are also .020" thick SLS. They will not weep, extrude, tear or become brittle over time.

Exhaust gaskets will not hinder exhaust gas flow and will not fray into the exhaust port.

Valve seals utilize Viton rubber and outer springs for a perfect seal.

- MLS & RCM explained:

- MLS = Multi-Layer-Steel:

Consists of a top and bottom layer of stainless spring steel which is covered by high temperature rubber on both sides. The inner ring is also stainless steel. These 3 layer gaskets are rivited together, outside the gasket surface, for ease of installation. MLS head gaskets eliminate the use of dowel pin o-rings.

- RCM = Rubber Coated Metal:

Consists of a top and bottom layer of stainless spring steel which will help prevent blowout. This thin steel is covered with a layer of heat resistant Viton rubber on both sides. An additional layer of red silicone is added for additional sealing qualities. A very strong gasket which requires no re-torquing.

Specifications

Fitment

91-03 XL1200 (NU)
