Bare Knuckle Performance, Narrow Glide triple tree kit, 39mm

Description

For use with 39mm diameter fork tubes.
Gloss black powder coated.

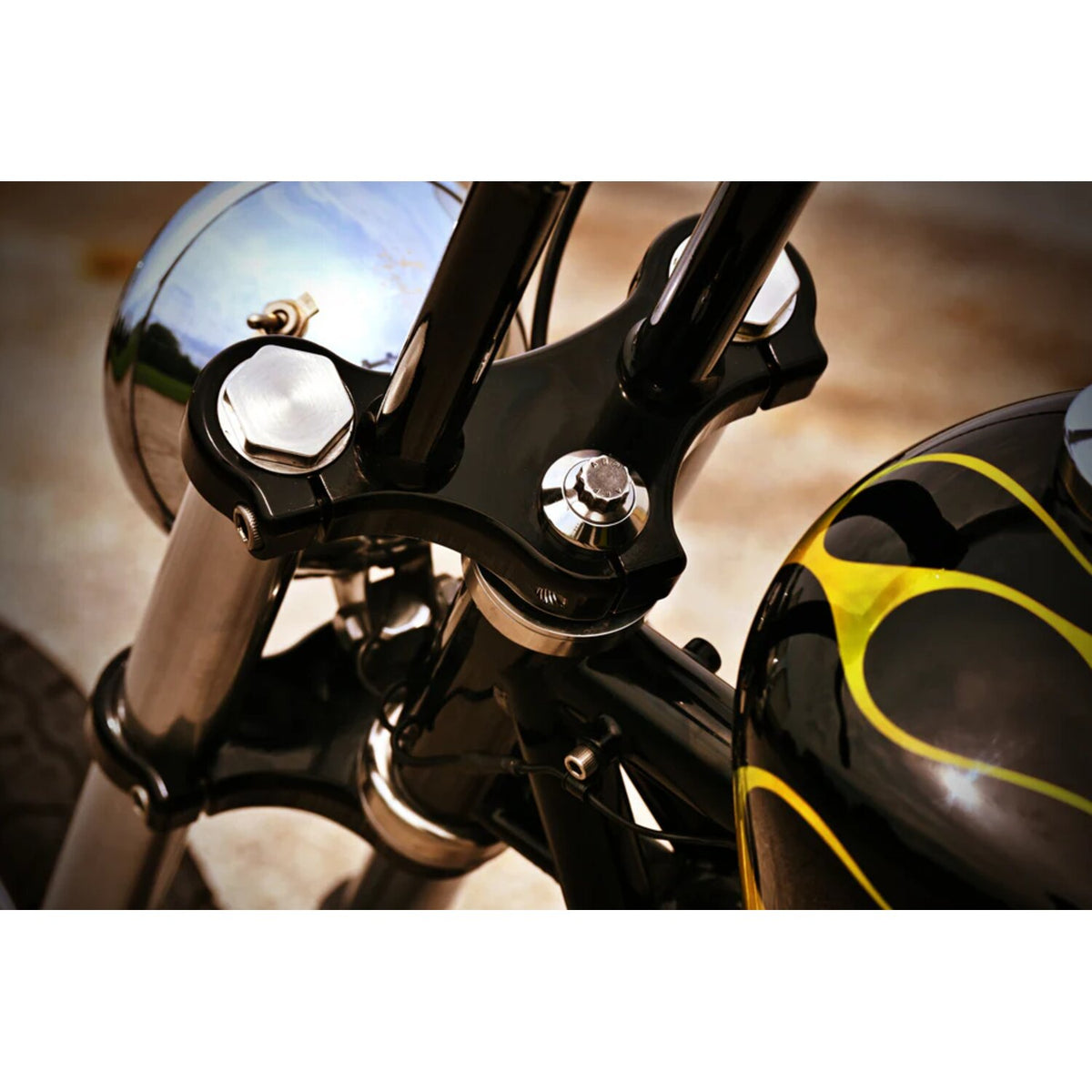

This is the ORIGINAL, but improved, Bare Knuckle Performance Narrow Glide triple tree kit. These trees are have center to center fork tube distance of 7" (177.8mm), identical to that of the stock Narrow Glide triple trees. Comes complete with steering stem, tapered flange washer, and an ARP stem bolt.
- Black powder coated finish
- Great for building a traditional width Narrow Glide bike
- With integral steering stop mount holes
- Drilled and counter bored for 3/8" headlamp bolt
- Drilled and counter bored for 1/2" riser bolts
- Traditional 3-1/2" (8.9cm) riser bolt spacing
- With wheel axle
- Includes all required installation hardware.
The required Narrow Glide stainless wheel axle is included and offers great and lasting custom looks. Made from 17-4 series polished stainless steel, which offers sheer and tensile strength comparable to that of chromoly with superior corrosion resistance. Axle will not bend or break. Comes with a high quality 12-point stainless steel nut and custom tapered washer. Nut is secured by a stainless steel e-ring.
Note: Axle and nut must be 100% clean before installation and coated with provided anti-seize (Loctite LB8012). This includes 'test fitting / hand tightening'. Cleaning axle, threads and anti-seize coating remains applicable when reinstalling after servicing wheel.

Specifications

Fitment

87-99 Big Twin, XL Sportster. With 39mm fork tubes
