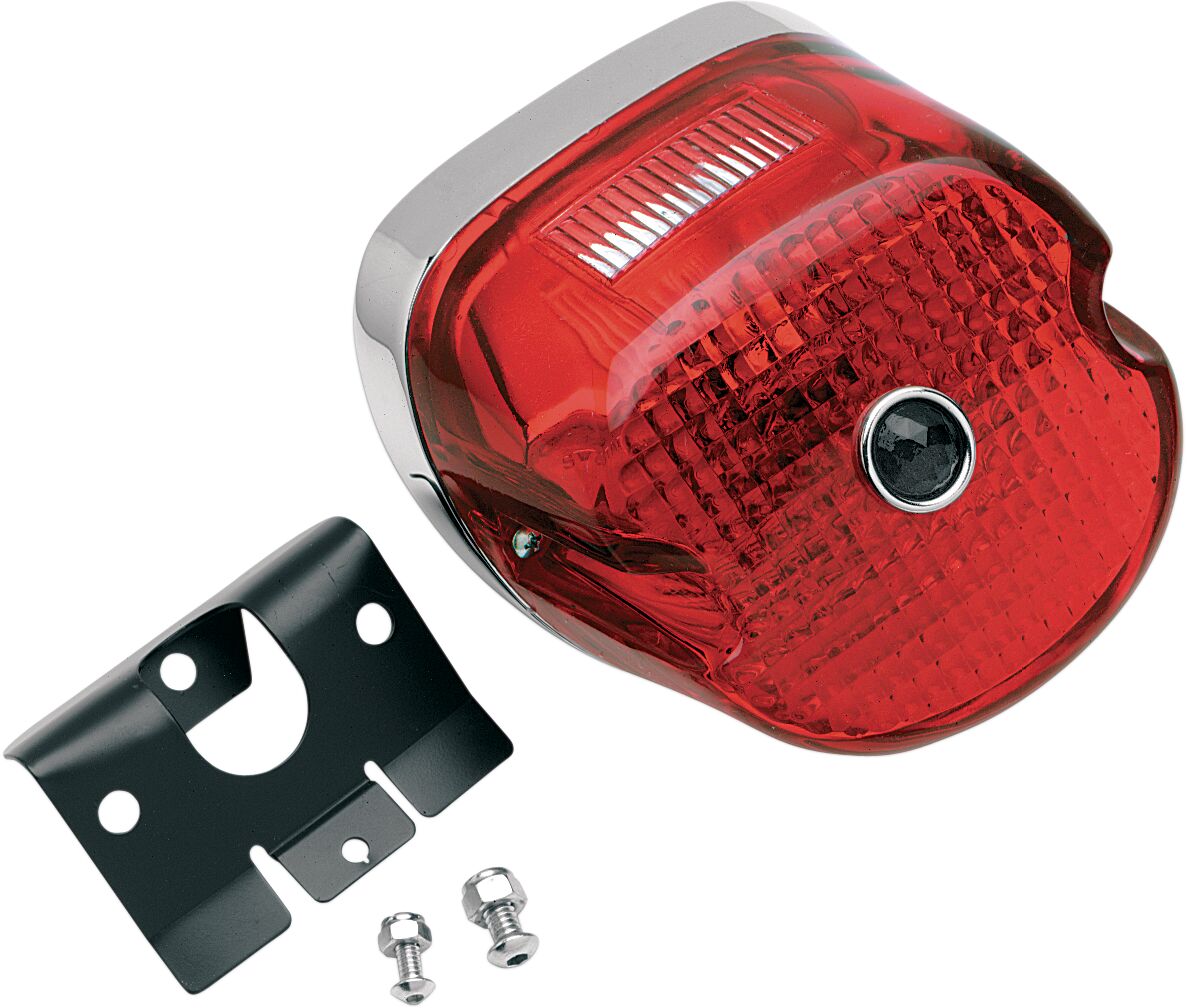

Drag Specialties Laydown Taillight Assembly — 120022CBM-BXLB1
Choose options
The details that matter
Details
Description
Laydown Taillight Assembly
- Taillight assemblies include taillight, adapter bracket, hardware and instructions for mounting on most '99-'16 FLT/FLHT, FXD, XL and '00-'16 FLST fenders (except FLSTS, FLSTN, FLSTSB, '10-'16 XL883N/1200N/1200X/1200V)
- Taillights will also bolt directly to the fender on most '84-'98 models (adapter bracket included)
- Adapter bracket can also be used to mount most other '84-'98 OEM-style taillights to '99-'16 FLT/FLHT, FXD, XL and 00-16 FLSTC fenders (also sold separately)
- Not DOT compliant.
- Installation on '99-'16 models will require modification of the OEM wiring.
- IMPORTANT: DOT-Certification is only valid in USA
Specifications
| Filament/Function | Dual |
|---|---|
| Mounting Position | Rear |
| Lens Color | Blue| Red |
| Riding Style | Street |
| Housing Color | Chrome |
| Units | Kit |
| For Make | Harley-Davidson® |
| Product Name | Taillight Assembly |
| Style | Laydown |
| Number of Bulbs | 1 |
