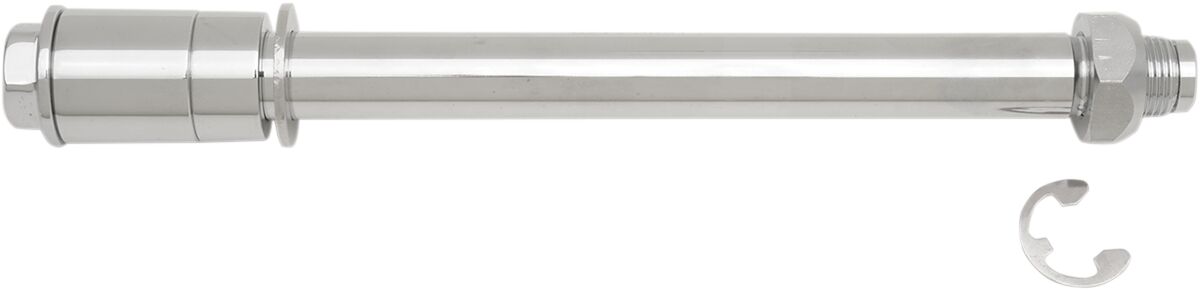

Drag Specialties Rear Axle Kit — W16-0341

Description

Rear Axle Kit

• Kit includes axle, spacers, nuts and washers
• Rear axle length is measured from the inside of the bolt head to the end of the threads.
• Models with ABS require only one spacer within kit.
Will not fit RH Sportster.

Specifications

Fitment

• Harley Davidson XL 1200 C Sportster Custom (2004–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 C Sportster Custom (2017–2020) — 1202 cc; AMERICA
• Harley Davidson XL 1200 C Sportster Custom 110th Anniversary (2013) — 1202 cc; ALL
• Harley Davidson XL 1200 C ABS Sportster Custom (2014–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 C ABS Sportster Custom (2017–2020) — 1202 cc; ALL
• Harley Davidson XL 1200 CA ABS Sportster Custom LE A (2016) — 1202 cc; EUROPE
• Harley Davidson XL 1200 CA ABS Sportster Custom LE A (2014–2015) — 1202 cc; EUROPE; Position: Rear
• Harley Davidson XL 1200 CB ABS Sportster Custom LE B (2016) — 1202 cc; EUROPE
• Harley Davidson XL 1200 CB ABS Sportster Custom LE B (2014–2015) — 1202 cc; EUROPE; Position: Rear
• Harley Davidson XL 1200 CB ABS Sportster Custom LE B (2017) — 1202 cc; EUROPE
• Harley Davidson XL 1200 CX Roadster (2016–2017) — 1202 cc; AMERICA
• Harley Davidson XL 1200 CX Sportster Roadster (2018–2020) — 1202 cc; AMERICA
• Harley Davidson XL 1200 CX ABS Roadster (2016–2017) — 1202 cc; ALL
• Harley Davidson XL 1200 CX ABS Sportster Roadster (2018–2020) — 1202 cc; ALL
• Harley Davidson XL 1200 L Low (2006–2011) — 1202 cc; ALL
• Harley Davidson XL 1200 N Nightster (2007) — AMERICA
• Harley Davidson XL 1200 N Nightster (2008–2012) — 1202 cc; ALL
• Harley Davidson XL 1200 NS Sportster Iron (2021) — 1202 cc; AMERICA
• Harley Davidson XL 1200 NS ABS Sportster Iron (2018–2020) — 1202 cc; ALL
• Harley Davidson XL 1200 NS ABS Sportster Iron (2021) — 1202 cc; AMERICA
• Harley Davidson XL 1200 R Roadster (2004–2008) — 1202 cc; ALL
• Harley Davidson XL 1200 T Sportster Superlow (2018–2019) — 1202 cc; AMERICA
• Harley Davidson XL 1200 T Super Low (2014–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 T Super Low (2017) — 1202 cc; AMERICA
• Harley Davidson XL 1200 T ABS Sportster Superlow (2018–2020) — 1202 cc; ALL
• Harley Davidson XL 1200 T ABS Super Low (2014–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 T ABS Super Low (2017) — 1202 cc; ALL
• Harley Davidson XL 1200 V Seventy-Two (2012–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 V ABS Seventy-Two (2014–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 X Forty-Eight (2010–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 X Forty-Eight (2017) — 1202 cc; AMERICA
• Harley Davidson XL 1200 X Sportster Forty-Eight (2018–2022) — 1202 cc; AMERICA
• Harley Davidson XL 1200 X ABS Forty-Eight (2014–2016) — 1202 cc; ALL
• Harley Davidson XL 1200 X ABS Forty-Eight (2017) — 1202 cc; ALL
• Harley Davidson XL 1200 X ABS Sportster Forty-Eight (2018–2020) — 1202 cc; ALL
• Harley Davidson XL 1200 X ABS Sportster Forty-Eight (2021–2022) — 1202 cc; AMERICA
• Harley Davidson XL 1200 X ABS Sportster Forty-Eight Anniversary (ANX) (2018) — 1202 cc; ALL
• Harley Davidson XL 1200 XS ABS Sportster Forty-Eight Special (2018–2020) — 1202 cc; ALL
• Harley Davidson XL 883 Sportster (2004–2007) — ALL
• Harley Davidson XL 883 Sportster (2008) — ALL; Position: Rear
• Harley Davidson XL 883 Sportster (2009) — EUROPE; Position: Rear
• Harley Davidson XL 883 C Sportster Custom (2004–2009) — ALL
• Harley Davidson XL 883 C Sportster Custom (2010) — EUROPE; Position: Rear
• Harley Davidson XL 883 L Low (2005–2010) — ALL
• Harley Davidson XL 883 L Super Low (2011–2016) — ALL
• Harley Davidson XL 883 L Super Low (2017) — AMERICA
• Harley Davidson XL 883 L Sportster SuperLow (2018–2020) — AMERICA
• Harley Davidson XL 883 L ABS Sportster SuperLow (2018–2020) — ALL
• Harley Davidson XL 883 L ABS Super Low (2014–2016) — ALL
• Harley Davidson XL 883 L ABS Super Low (2017) — ALL
• Harley Davidson XL 883 N Iron (2009–2016) — ALL
• Harley Davidson XL 883 N Iron (2017) — AMERICA
• Harley Davidson XL 883 N Sportster Iron (2021–2022) — AMERICA
• Harley Davidson XL 883 N Sportster Iron (2018–2020) — AMERICA
• Harley Davidson XL 883 N ABS Iron (2014–2016) — ALL
• Harley Davidson XL 883 N ABS Iron (2017) — ALL
• Harley Davidson XL 883 N ABS Sportster Iron (2018–2020) — ALL
• Harley Davidson XL 883 N ABS Sportster Iron (2021–2022) — AMERICA
• Harley Davidson XL 883 R Roadster (2004, 2006–2007) — ALL
• Harley Davidson XL 883 R Roadster (2008–2013) — EUROPE; Position: Rear
• Harley Davidson XL 883 R ABS Roadster (2014–2015) — EUROPE; Position: Rear
• Harley Davidson XL50 1200 50th Anniversary (2007) — AMERICA
