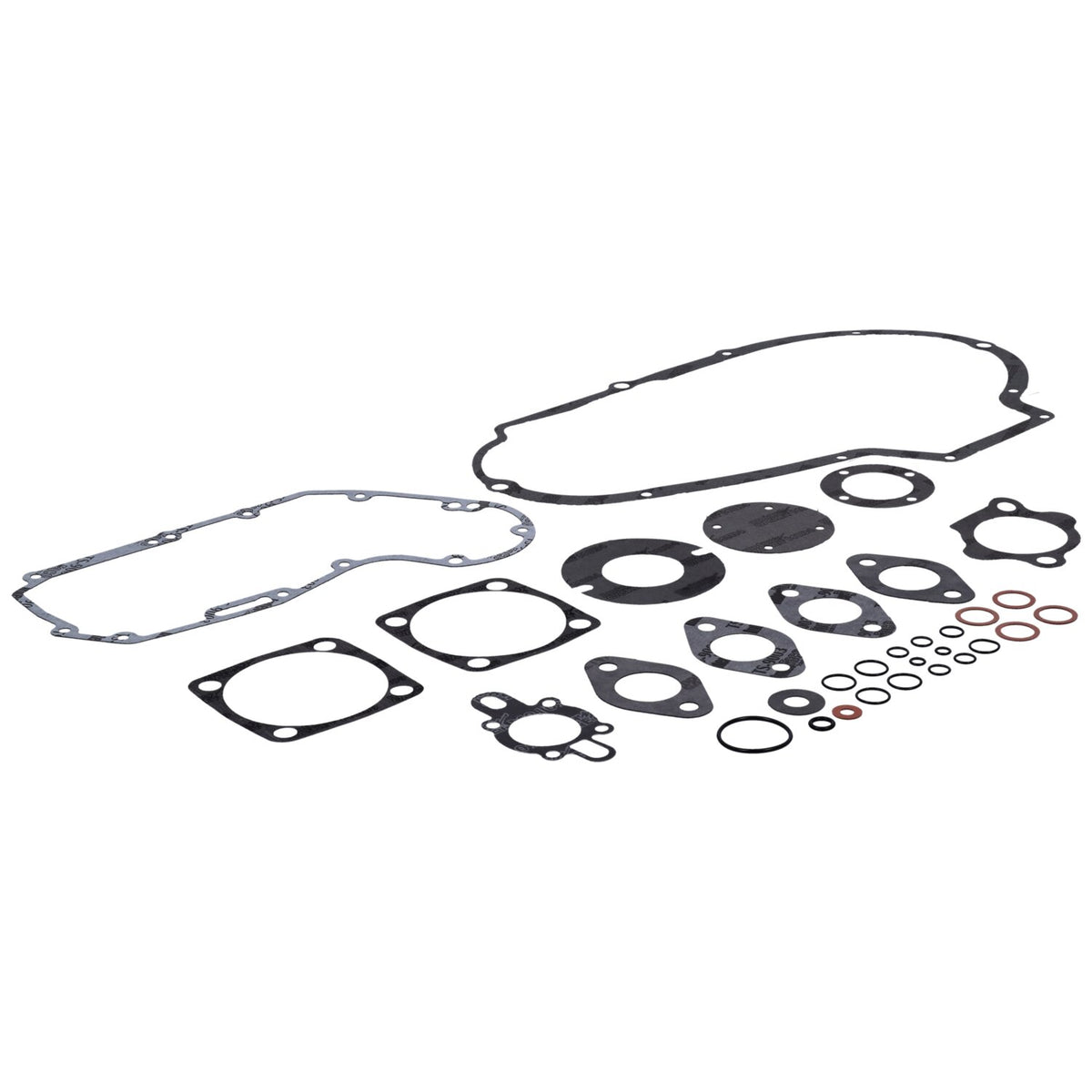

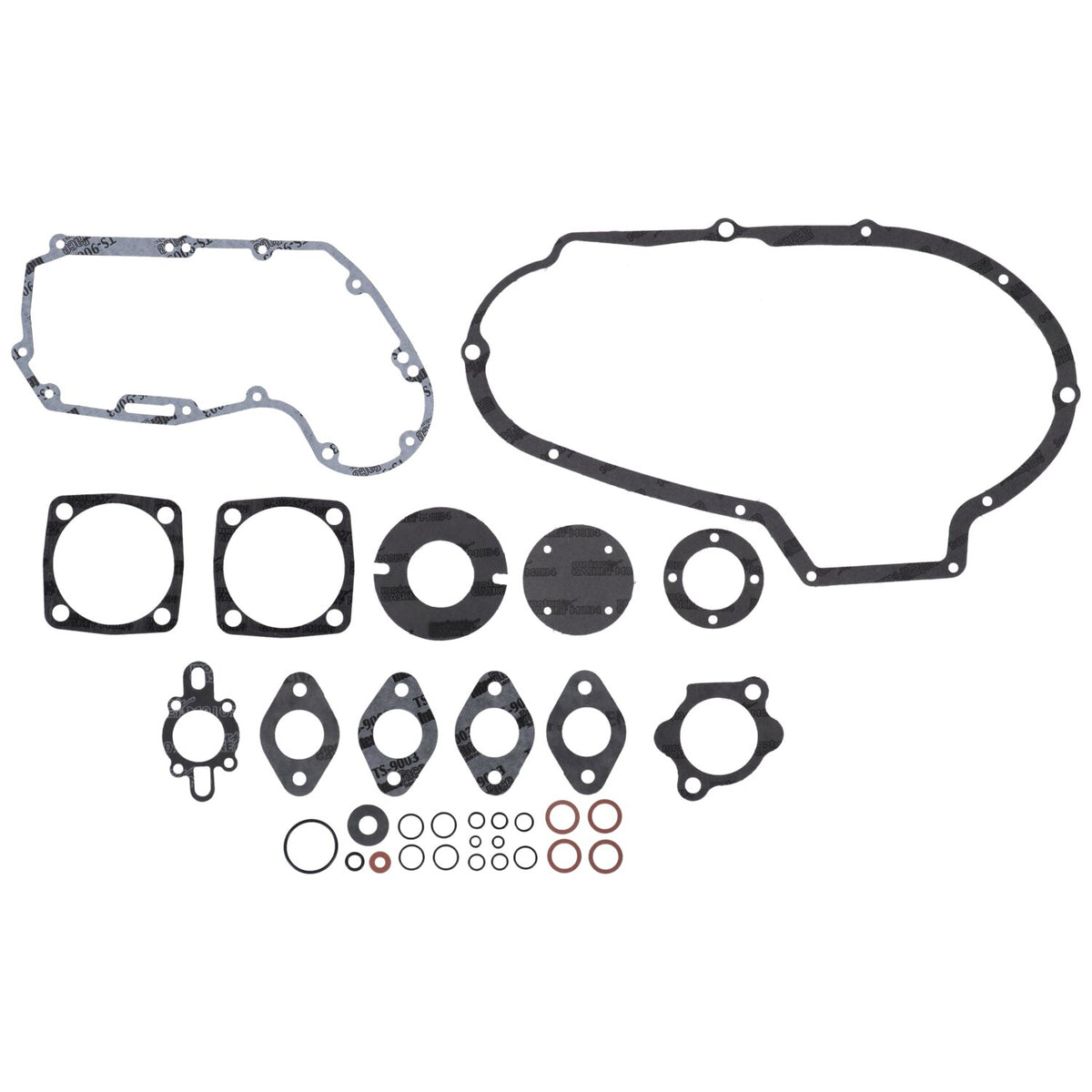

Athena, motor gasket kit (no oil seals). XR1000

Description

No oil seals included.
3-3/16" bore.
No head gaskets.
With 0.3mm (.012") reinforced fiber base gaskets.
Includes 0.75mm (.030") thick reinforced fiber primary gasket with a silicone bead.
Otherwise complete with all gaskets, O-rings and primary gaskets required for a complete engine overhaul.
Complete as shown.
Note: Does not include cylinder head gaskets since XR1000 models were never factory equipped with head gaskets. Originally the steel (iron) cylinders & high performance aluminum heads are bolted together without the use of any sort of head gasket. As such head gaskets are not offered by Athena. The use of any sort of head to cylinder sealing solution would be non-stock.
Note: Some spray paint the gasket surface as an additional sealant. This is not a Factory solution and it is not advised, do so at your own risk.

Specifications

Fitment

83-84 XR1000 (NU)

Part numbers
