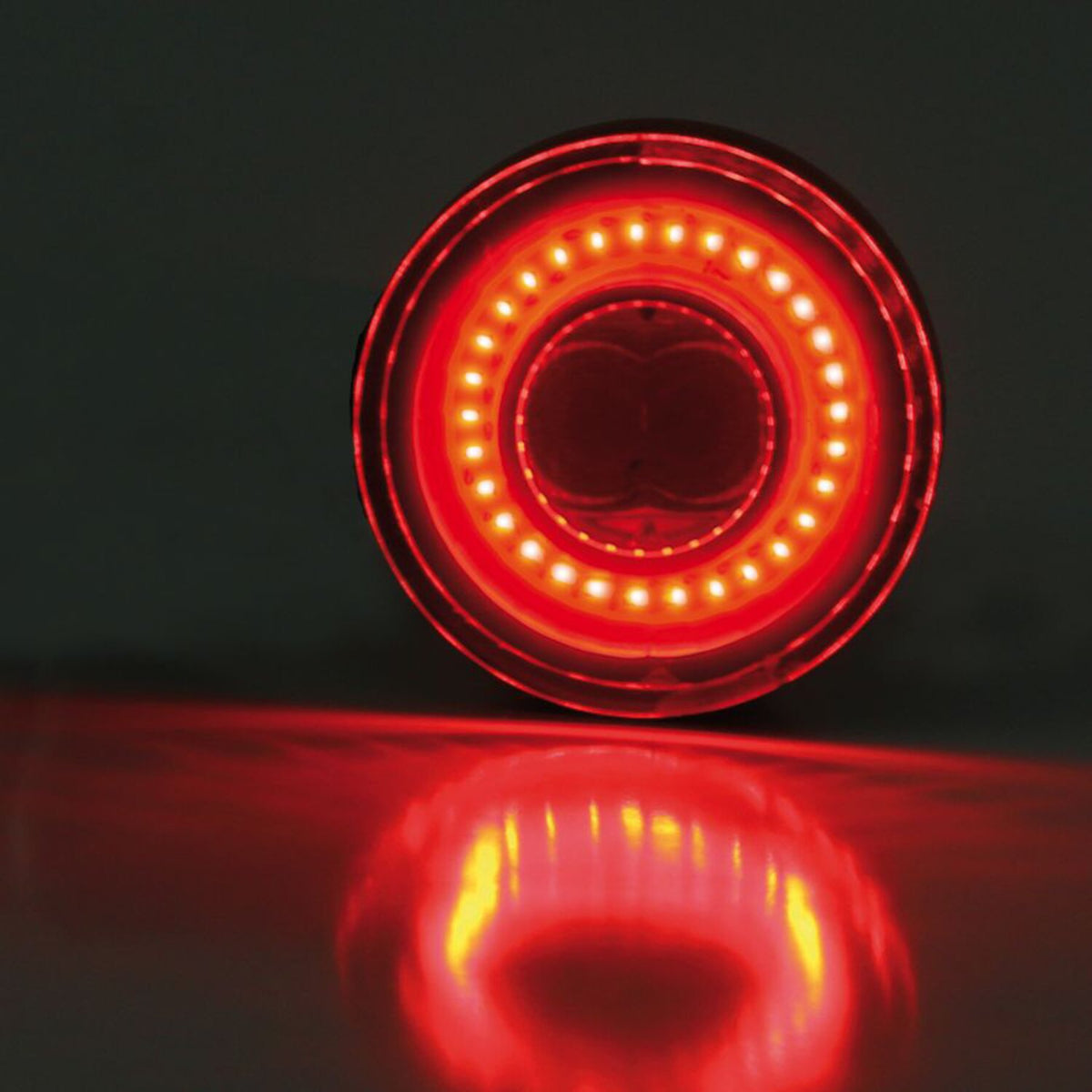

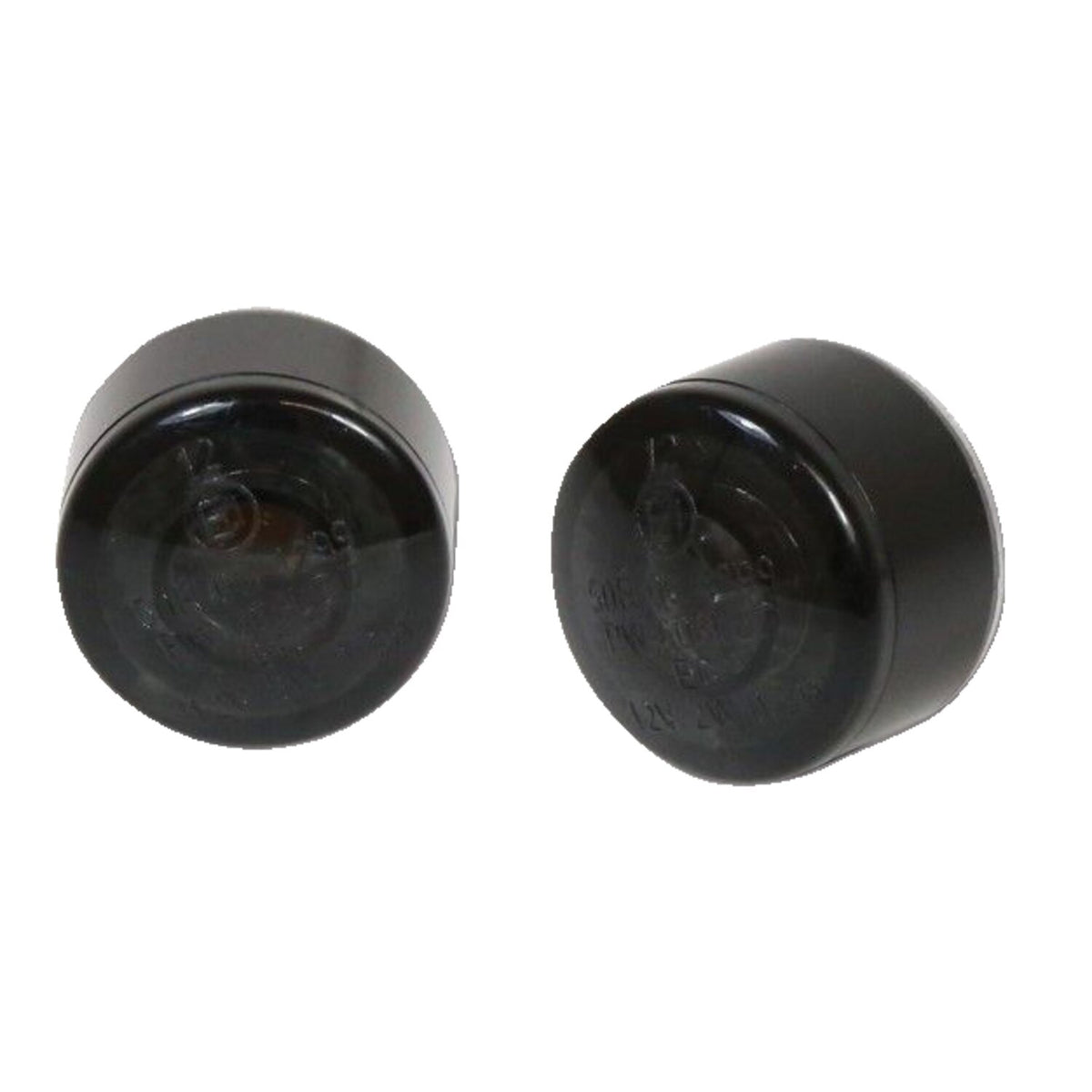

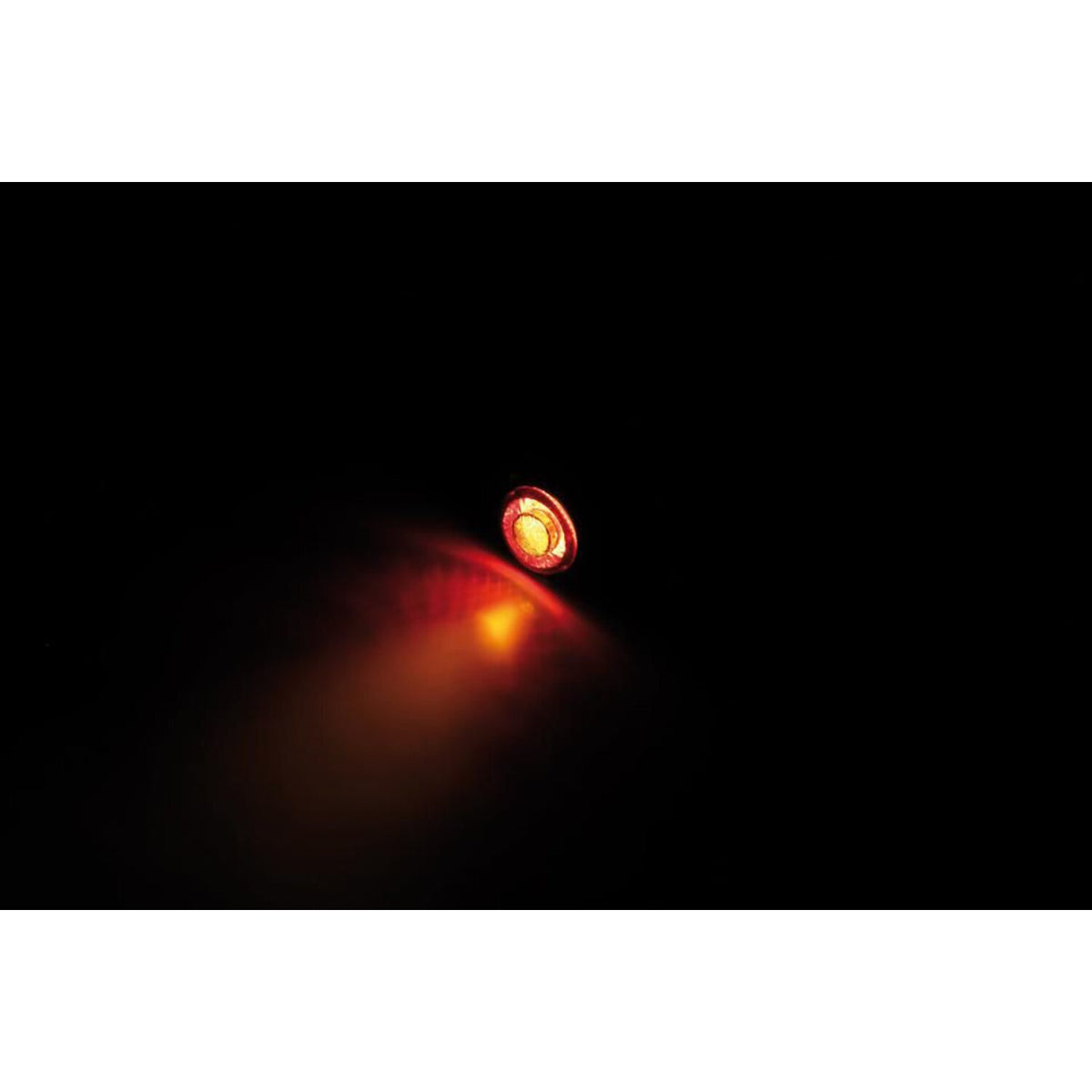

Apollo miniature round smd LED taillight/turn signal combo
Choose options
The details that matter
Details
Description
Smoke lens. Miniature lights with 2 super bright SMD LEDs and a smoke ECE approved lenses. Plastic construction with a black anodized aluminum ring that fits over the body. Dimensions: 22mm diameter x 12mm deep. The threaded bolt on the rear is M8 x 12mm. Yellow wire = taillight, red wire = brake light, blue wire = turn signal, black wire = ground.
Note: Installs in a 8mm mount hole. Alternatively Apollo lights can be flush-installed in a 20mm diameter hole, when the aluminum 'body ring' is removed, so just the lens is visible.
Note: An optional steel housing, for more installation options, is separately available as 922198.
Specifications
| Unit | pr |
|---|
Fitment
Universal
Part numbers
| Supplier SKU | 922149 |
|---|---|
| Manufacturer part |
Specifications
| Brand | MCS |
|---|---|
| Category | Taillight/turn signals combo |
