Drag Specialties Gas Tank with Chrome Aero-Style Gas Cap — 011743-BX39
Choose options
The details that matter
Details
Description

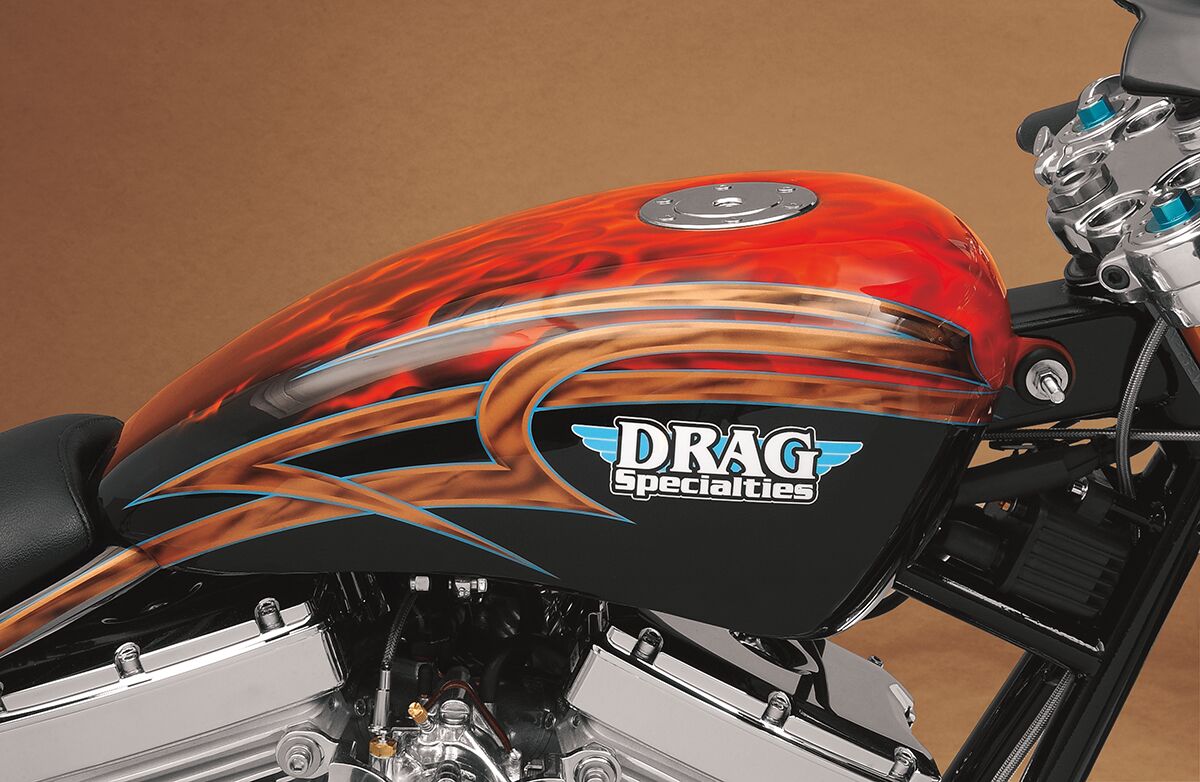

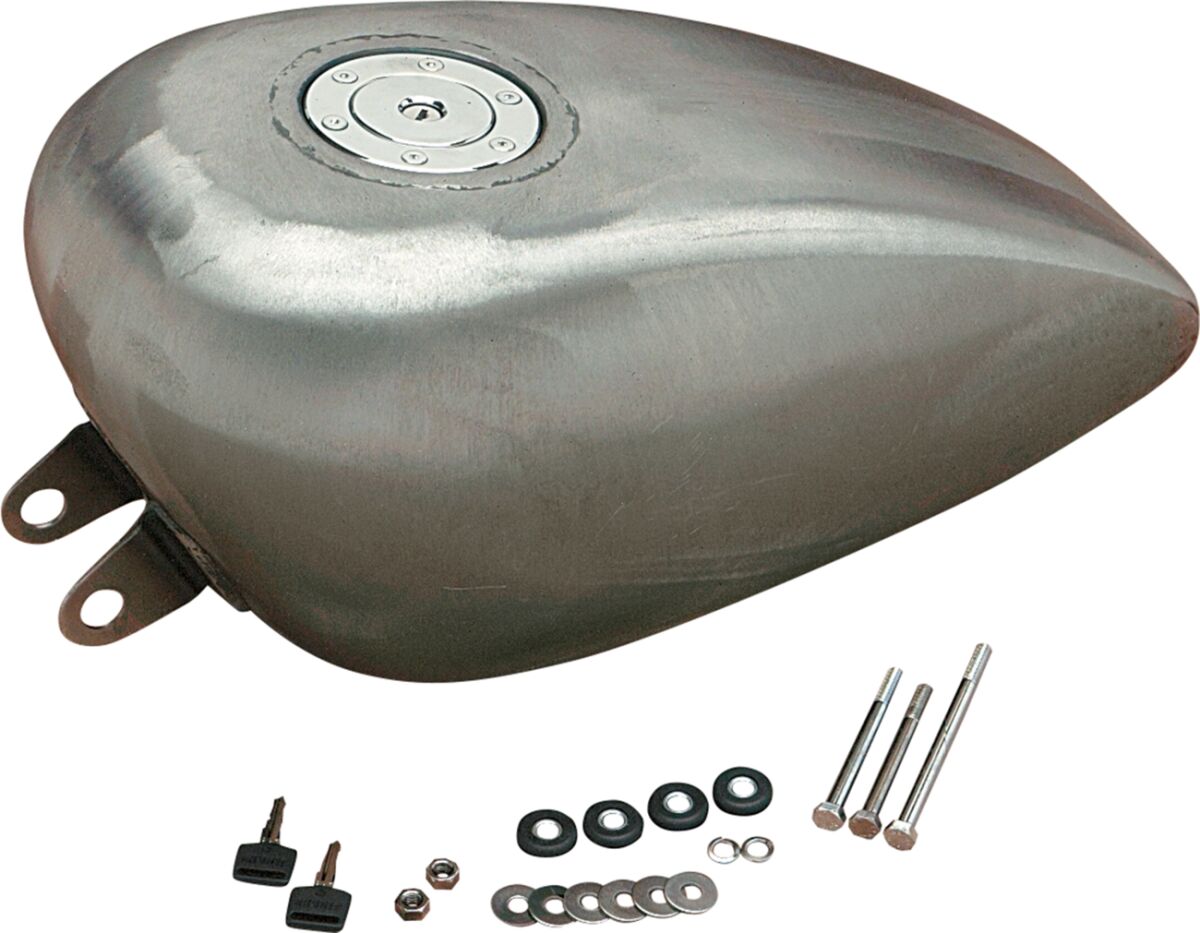

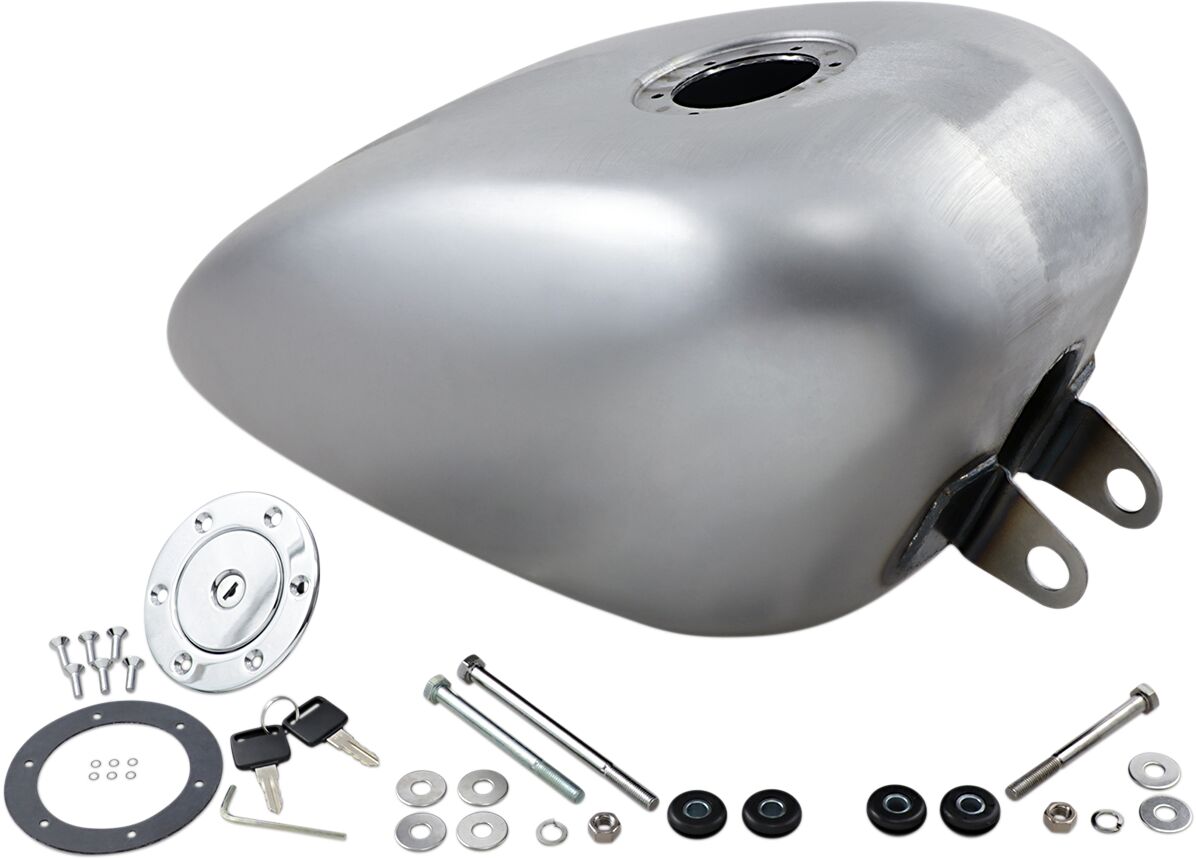

Gas Tank with Chrome Aero-Style Gas Cap
- Rubber-mounted bolt-on style flat-bottom tank is made from heavy-gauge steel
- 3.3-gallon high-tunnel tank design
- Features chrome aero-style locking gas cap with keys
- Reinforced seams and mounting tabs
- All tanks are shipped unpainted.
- All gas tanks should be fitted, pressure tested and sealed before being painted to eliminate potential problems. May require seat nose modifications and relocation of ignition switch on some models. Accepts a 22mm petcock; sold separately.
Specifications
| Style | High Tunnel |
|---|---|
| Material | Steel |
| Riding Style | Street |
| Mounting Style | Bolt-On |
| Fuel Tank Outlet Size | 22 mm |
| Units | Each |
| Color/Finish | Chrome| Raw |
| Base Color | Silver |
| Type | Rubber Mount |
| Product Name | Gas Tank |
| Tank Capacity Metric | 12.5 liter |
| Features | Right Fuel Tank Outlet |
| Tank Capacity | 12,5 liter (3,3 US gal.) |
| Application | Carbureted |
| Tank Capacity Imperial | 3.3 US gal. |
| Cap Style | Aero |
Fitment
- Harley Davidson XLH 1000 Sportster (1982) — 987 cc; ALL
- Harley Davidson XLH 1000 Sportster (1983–1985) — 987 cc; ALL
- Harley Davidson XLH 1100 Sportster (1986–1987) — 1087 cc; ALL
- Harley Davidson XLH 1200 Sportster (1988–1994) — 1199 cc; ALL
- Harley Davidson XLH 883 Sportster (1986–1987, 1990–1994) — ALL
- Harley Davidson XLH 883 Sportster Deluxe (1988–1993) — ALL
- Harley Davidson XLH 883 Sportster Deluxe (1994) — AMERICA
- Harley Davidson XLH 883 Sportster Hugger (1988–1994) — ALL
- Harley Davidson XLS 1000 Roadster (1982) — 987 cc; ALL
- Harley Davidson XLS 1000 Roadster (1984–1985) — 987 cc; ALL
- Harley Davidson XLS 1000 Roadster Custom Sport (1983) — 987 cc; ALL
- Harley Davidson XLX 1000 Sportster (1983–1985) — 987 cc; ALL
Part numbers
| Product code | DS390340 |
|---|---|
| Manufacturer part | 011743-BX39 |
| Barcode | DS-390340 |
Specifications
| Brand | Drag Specialties |
|---|---|
| Category | Gas Tank |
Fitment
